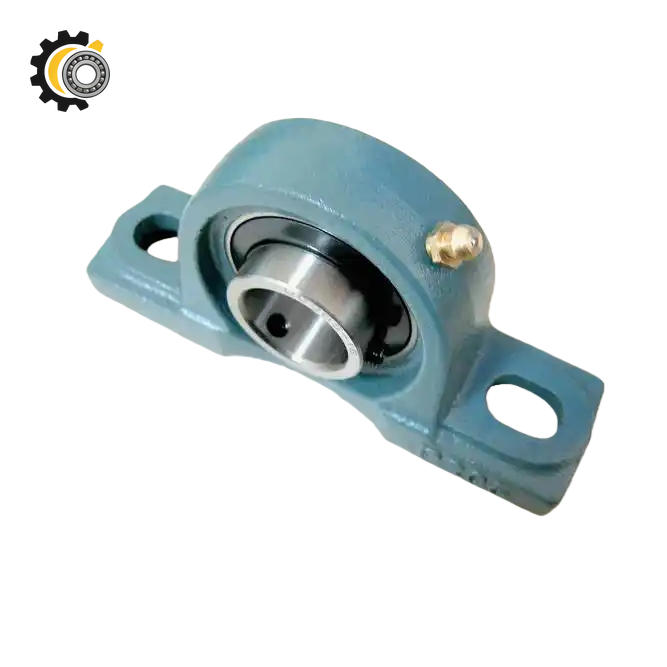

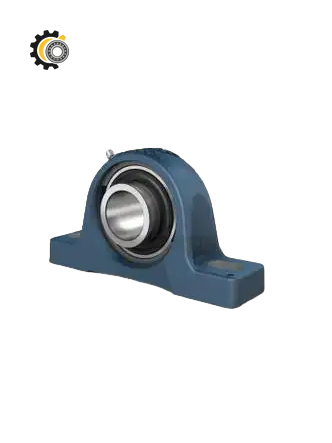

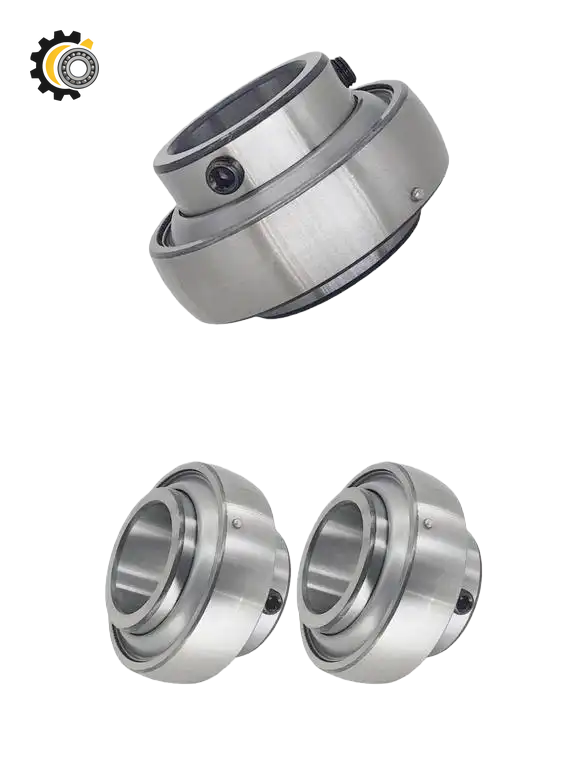

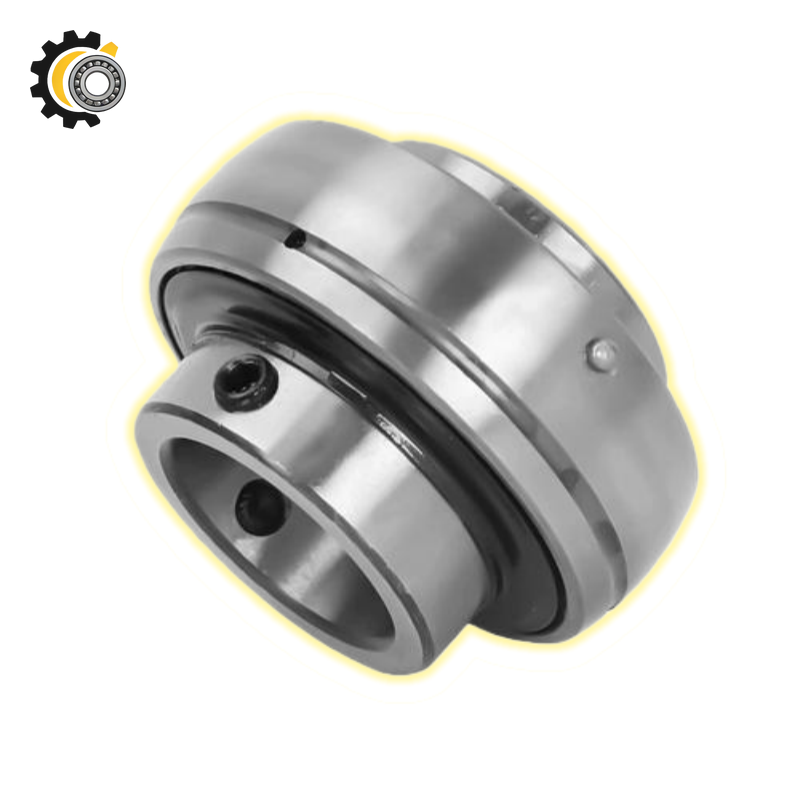

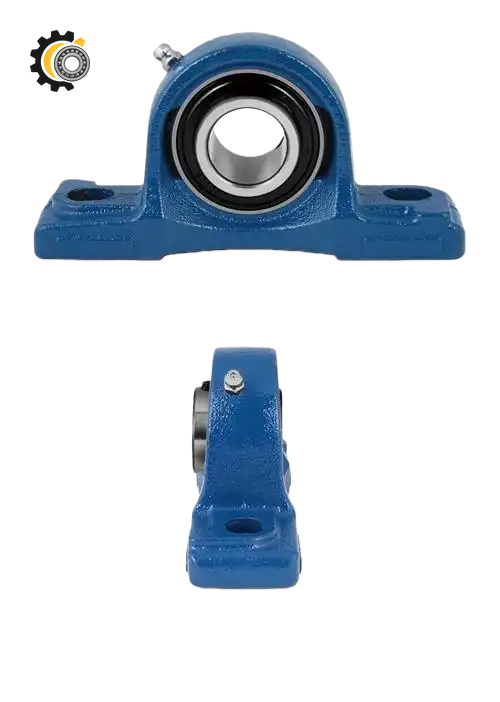

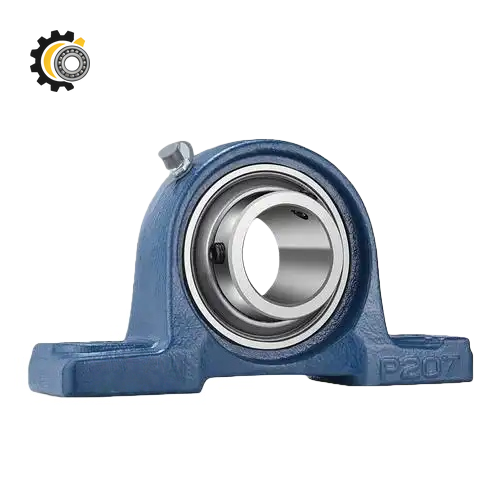

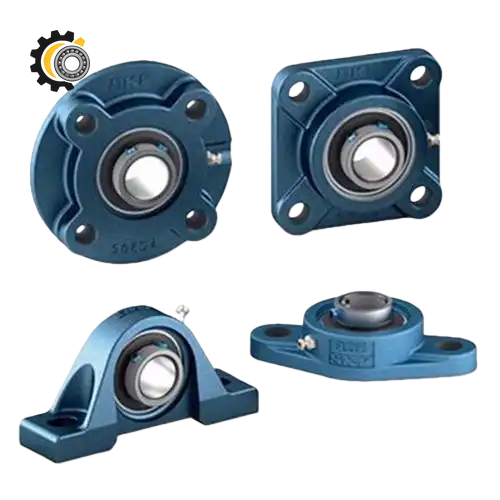

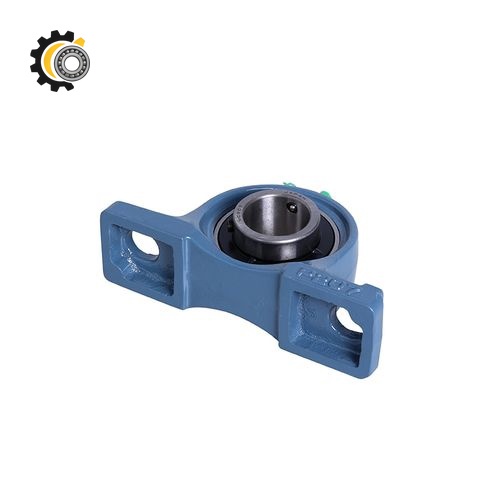

Spherical Outer Surface

- PRODUCT SPECIFICATION -

UC200 Series

Bearing Model	Old Model	Bore Diameter d(mm)	Outer Diameter D(mm)	Total Width B(mm)	Inner Ring Width C(mm)	Dynamic Load Rating Cr(kN)	Static Load Rating Cor(kN)	Weight(kg)	Limiting Speed(r/min)	Set Screw Size
UC201	90501	12	47	31.0	17	9.97	6.22	0.21	4000	M6×1
UC202	90502	15	47	31.0	17	9.97	6.22	0.19	4000	M6×1
UC203	90503	17	47	31.0	17	9.97	6.22	0.18	4000	M6×1
UC204	90504	20	47	31.0	17	9.88	6.20	0.16	4000	M6×0.75
UC205	90505	25	52	34.1	17	10.78	6.98	0.22	3400	M6×0.75
UC206	90506	30	62	38.1	19	14.97	10.04	0.35	2800	M6×0.75
UC207	90507	35	72	42.9	20	19.75	13.67	0.52	2400	M8×1.0
UC208	90508	40	80	49.2	21	22.71	15.94	0.70	2200	M8×1.0
UC209	90509	45	85	49.2	22	24.36	17.71	0.74	1900	M8×1.0
UC210	90510	50	90	51.6	24	26.98	19.84	0.83	1800	M10×1
UC211	90511	55	100	55.6	25	33.37	25.11	1.16	1600	M10×1
UC212	90512	60	110	65.1	27	36.74	27.97	1.56	1500	M10×1
UC213	90513	65	120	65.1	28	44.01	34.18	1.96	1400	M10×1
UC214	90514	70	125	74.6	29	46.79	37.59	2.18	1300	M12×1.25
UC215	90515	75	130	77.8	30	50.85	41.26	2.42	1200	M12×1.25
UC216	90516	80	140	82.6	33	55.04	45.09	2.82	1100	M12×1.25
UC217	90517	85	150	85.7	35	64.01	53.28	3.40	1000	M12×1.25
UC218	90518	90	160	96.0	37	73.83	60.76	4.30	950	M12×1.25
UC220	90520	100	180	108.0	41	93.95	79.35	4.50	900	M12×1.25

UC300 Series

Bearing Model	Old Model	Bore Diameter d(mm)	Outer Diameter D(mm)	Total Width B(mm)	Inner Ring Width C(mm)	Dynamic Load Rating Cr(kN)	Static Load Rating Cor(kN)	Weight(kg)	Limiting Speed(r/min)	Set Screw Size
UC305	90605	25	62	38.0	21	17.22	11.39	0.35	2800	M6×1.0
UC306	90606	30	72	43.0	23	20.77	14.17	0.56	2600	M6×1.0
UC307	90607	35	80	48.0	25	25.66	17.92	0.71	2200	M8×1.0
UC308	90608	40	90	52.0	27	31.35	22.38	0.96	2000	M10×1
UC309	90609	45	100	57.0	30	40.66	30.00	1.28	1800	M10×1
UC310	90610	50	110	61.0	32	47.58	35.71	1.65	1700	M12×1.25
UC311	90611	55	120	66.0	34	55.05	41.91	2.07	1400	M12×1.25
UC312	90612	60	130	71.0	36	62.88	48.60	2.60	1300	M12×1.25
UC313	90613	65	140	75.0	38	72.21	56.68	3.25	1200	M12×1.25
UC314	90614	70	150	78.0	40	80.10	63.48	3.89	1100	M12×1.25
UC315	90615	75	160	82.0	42	87.25	71.67	4.72	1000	M12×1.25
UC316	90616	80	170	86.0	44	94.57	80.35	5.55	1000	M16×1.5
UC317	90617	85	180	96.0	46	102.05	89.52	6.67	950	M16×1.5
UC318	90618	90	190	96.0	48	110.81	100.76	7.56	900	M16×1.5
UC319	90619	95	200	103.0	50	120.51	113.75	8.70	850	M16×1.5
UC320	90620	100	215	108.0	54	133.06	131.18	10.80	800	M16×1.5

UEL Series

Bearing Model	Old Model	Bore Diameter d(mm)	Outer Diameter D(mm)	Total Width B(mm)	Eccentric Collar Width B1(mm)	Dynamic Load Rating Cr(kN)	Static Load Rating Cor(kN)	Weight(kg)	Limiting Speed(r/min)	Matching Eccentric Collar
UEL201	390501	12	40	27.4	28.6	7.36	4.48	0.41	4500	P501
UEL202	390502	15	40	27.4	28.6	7.36	4.48	0.13	4500	P502
UEL203	390503	17	40	27.4	28.6	7.36	4.48	0.12	4500	P503
UEL204	390504	20	47	31.0	31.0	9.88	6.20	0.15	4000	P504
UEL205	390505	25	52	34.1	31.0	10.78	6.98	0.22	3400	P505
UEL206	390506	30	62	38.1	35.7	14.97	10.04	0.30	2800	P506
UEL207	390507	35	72	42.9	38.9	19.75	13.67	0.50	2400	P507
UEL208	390508	40	80	49.2	43.7	22.71	15.94	0.67	2200	P508
UEL209	390509	45	85	49.2	43.7	24.36	17.71	0.74	1900	P509
UEL210	390510	50	90	51.6	46.0	26.98	19.84	0.83	1800	P510
UEL211	390511	55	100	55.6	49.2	33.37	25.11	1.16	1600	P511
UEL212	390512	60	110	65.1	58.7	36.74	27.97	1.56	1500	P512

- Application Scenarios -

Automotive Industry

Bearings are widely used in the automotive field, such as rear wheels, transmissions, differentials, electrical device components, etc., all of which use bearings to support and reduce friction.

Agricultural Machinery

In agricultural machinery such as tractors and harvesters, bearings are widely used in key parts such as transmission systems and walking systems to ensure the stable operation of the machinery.

Construction Machinery

In construction machinery, bearings play an important role in withstanding heavy loads and impact loads, ensuring stable performance of machinery under high-intensity operations.

Machine Tool

Bearings serve as the core, precision foundational components of machine tools, providing low-friction, high-rigidity rotational and linear support for the various moving units of the machine. They constitute the critical guarantee enabling CNC machine tools to achieve micron-level precision machining.

Medical Device

Bearings serve as the core precision support components in medical devices; characterized by high precision, low friction, high reliability, and biocompatibility, they constitute the critical foundational elements enabling precise diagnosis and treatment in high-end medical equipment.

Precision Instruments

Bearings serve as the core reference support components for precision instruments; characterized by ultra-high rotational precision, extremely low friction torque, and exceptional operational smoothness, they constitute the critical foundational elements enabling precision instruments to achieve high-accuracy detection, regulation, and signal acquisition.

Transportation

Bearings serve as the core foundational support and transmission components for various types of transportation equipment. Characterized by high load-bearing capacity, shock resistance, high reliability, and long service life, they constitute the critical foundational elements essential for the efficient and stable operation of the transportation industry.

Energy Equipment

Bearings serve as the core foundational support and transmission components for energy equipment. Characterized by high load-bearing capacity, resilience to extreme operating conditions, long service life, and high reliability, they constitute the critical foundational elements essential for ensuring stable production, guaranteeing supply, and enhancing efficiency within the energy sector.
